Creating a Box and a Cone in Autodesk 3ds Max is quite straightforward. Here's a step-by-step guide for beginners:

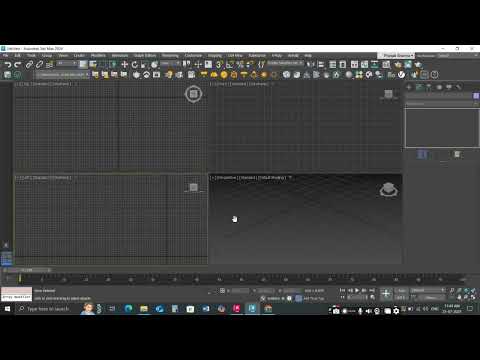

Set Up Your Viewport & Interface

• Open 3ds Max.

• Ensure you can see the Command Panel (on the right) with tabs like Create, Modify, etc.

• Use a viewport layout that suits you (e.g. Perspective + Top).

• Press P to quickly switch a viewport to Perspective.

• Press Alt + W to maximize a viewport — helpful when modeling.

 Create a Box

1. In the Command Panel, click the Create tab (it looks like a star or plus icon).

2. Choose Geometry (if not already active).

3. In the dropdown below it, pick Standard Primitives.

4. Click on Box.

5. Go to one of the viewports (e.g. Top or Perspective).

6. Click + drag to draw the base rectangle of the box.

7. Release the mouse button.

8. Move the mouse upward (in the same viewport) to define the height.

9. Click again to set the final height.

After creation, you’ll see the box. You can then click the Modify tab to adjust parameters:

• Length, Width, Height

• Length Segments, Width Segments, Height Segments

• Change color or name in the “Name and Color” rollout

---

   Create a Cone

1. In the same Create → Geometry → Standard Primitives menu, click Cone.

2. Go to your viewport.

3. Click + drag to define the base radius (the bottom circle).

4. Release, then move upward to set the height.

5. Click to confirm height.

6. (Optionally) Click + drag again to define the top radius (if you want a truncated cone).

7. Release to finish.

Again, under the Modify tab you can tweak:

• Radius 1 (base)

• Radius 2 (top)

• Height

• Sides (more = smoother)

• Cap Segments, Height Segments

 Tips & Shortcuts

• F4 toggles edged faces (wireframe overlay on objects) — helps see shape structure.

• Use the Top / Front / Left / Perspective viewports to position objects precisely.

• After creating, always jump to the Modify panel — that’s where real customization happens.

• Practice combining primitives (box, cone, cylinder, sphere) to build more complex models.

How to Create Sphere, Geosphere, Cylinder & Tube in 3ds Max – Step-by-Step Guide

   How to Create a Sphere in 3ds Max

1. Open 3ds Max and go to the Command Panel (right side).

2. Click on the Create tab (Star icon ⭐).

3. Choose Geometry → Standard Primitives.

4. Select Sphere from the list.

5. In the Perspective Viewport, click and drag to define the radius.

6. Release the mouse to create the sphere.

7. Use the Modify tab to adjust:

   • Radius

   • Segments (higher values = smoother surface)

💡 Tip: Use "F4" to toggle wireframe view and better visualize segments.

---

     How to Create a Geosphere in 3ds Max

1. Go to Create → Geometry → Standard Primitives.

2. Select Geosphere.

3. Click and drag in the viewport to set the radius.

4. Release to create the geosphere.

Geospheres are made of triangles instead of quads, making them more optimized for games and simulations.

Modify Options:

• Radius

• Segments

• Base Type (Icosa, Octa, Tetra)

✅ Use geospheres for efficient, low-poly modeling.

---

     How to Create a Cylinder in 3ds Max

1. In the Standard Primitives list, select Cylinder.

2. Click and drag to set the base radius.

3. Release the mouse and move upwards to define the height.

4. Click again to complete.

Customize in the Modify tab:

• Radius

• Height

• Height Segments

• Cap Segments

• Sides (increase for a smoother cylinder)

🎯 Perfect for pipes, towers, columns, and more.

---

     How to Create a Tube in 3ds Max

1. Choose Tube from the Standard Primitives menu.

2. In the viewport, click and drag to set the outer radius.

3. Release and drag again to set the inner radius (thickness).

4. Move the mouse up to set the height and click to finish.

Tube Parameters:

• Inner Radius

• Outer Radius

• Height

• Segments (height, cap, and sides)

🔁 Great for modeling hollow objects like rings, pipes, or mechanical parts.

How to Create Torus, Pyramid, Teapot, Plane & TextPlus in 3ds Max – Beginner-Friendly Guide

How to Create a Torus in 3ds Max

A Torus is a ring-shaped object — ideal for modeling tires, rings, or circular frames.

Steps:

1. Go to the Command Panel → Create tab.

2. Select Geometry → Standard Primitives.

3. Click on Torus.

4. In the viewport, click and drag to set the major radius (outer ring).

5. Release and drag again to define the minor radius (thickness of the ring).

6. Click once more to finish.

Modify Panel Options:

• Radius 1 (outer ring)

• Radius 2 (tube thickness)

• Segments (for smoothing)

• Sides (polygon count around the ring)

---

How to Create a Pyramid in 3ds Max

The Pyramid primitive is useful in architectural modeling or stylized designs.

Steps:

1. In the Standard Primitives list, click on Pyramid.

2. Click and drag in the viewport to set the base.

3. Move the mouse up to set the height, and click to finalize.

Modify Options:

• Length, Width, Height

• Segments for each axis

📐 Use Pyramid shapes to create roofs, monuments, or angular structures.

---

How to Create a Teapot in 3ds Max

The Teapot is a classic test model used in 3D software for rendering, lighting, and shading demos.

Steps:

1. From the Create → Standard Primitives, select Teapot.

2. Click and drag in the viewport to define its size.

3. Release to create the object.

Modify Options:

• Radius

• Control over parts: Handle, Spout, Lid, Body

☕ Great for testing materials, lighting setups, and render quality.

---

How to Create a Plane in 3ds Max

A Plane is a flat 2D surface — perfect for floors, walls, water surfaces, or backgrounds.

Steps:

1. Go to Create → Geometry → Standard Primitives.

2. Select Plane.

3. Click and drag in the viewport to define the size.

4. Release to finish.

Modify Panel:

• Length and Width

• Length Segments and Width Segments (for tessellation/detail)

🎬 Planes are widely used for camera projection, textures, and terrain creation.

---

How to Create a TextPlus Object (TextBox) in 3ds Max

TextPlus is the improved 3D text tool in 3ds Max, used to create logos, titles, signage, and more.

Steps:

1. Go to Create → Shapes → TextPlus.

2. Click in the viewport to place the text.

3. In the Modify Panel, enter your desired text.

4. Customize font, size, alignment, kerning, and more.

To turn it into 3D:

• Apply a Bevel or Extrude modifier from the Modifier List.

✍️ TextPlus is powerful for branding, 3D typography, and design visualization.

How to Create Line, Rectangle, Circle & Ellipse (Spline) in 3ds Max – Step by Step Tutorial for Beginners & Students

Learn the basics of Spline modeling in 3ds Max with this easy tutorial. Splines are the foundation of 2D shapes used to create 3D models for interior design, architecture, and product visualization.

In this video, you will learn:

• How to draw Line, Rectangle, Circle, and Ellipse using the Shapes (Spline) panel.

• How to edit vertices, segments, and splines for custom shapes.

• How to use Snaps for accurate alignment.

• How to convert splines into 3D objects using modifiers like Extrude or Lathe.

Perfect for +2 and BA students, this tutorial builds a strong foundation for 3D modeling and CAD-based design.

✅ Steps to Create Line, Rectangle, Circle & Ellipse (Spline)

1. Create Line

1. Go to Create → Shapes → Line.

2. Click and drag in the viewport to draw your line.

3. Right-click to finish the line.

4. In Modify panel, you can edit vertices and curves.

2. Create Rectangle

1. Go to Create → Shapes → Rectangle.

2. Click and drag to set length and width.

3. Adjust parameters like corner radius in the Modify panel.

3. Create Circle

1. Go to Create → Shapes → Circle.

2. Click and drag to define the radius.

3. Use parameters to adjust precision and alignment.

4. Create Ellipse

1. Go to Create → Shapes → Ellipse.

2. Click and drag to set major and minor axis.

3. Use Modify panel to adjust proportions or convert to Editable Spline.

---

🧭 Pro Tips

• Use Snaps (S key) for precision.

• Combine splines using Attach.

• Convert to Editable Spline for advanced editing.

• Apply Extrude or Lathe modifier to create 3D objects from these splines.

How to Create Arc, Ngon, Star, Donut & Text (Spline) in 3ds Max – Step by Step Tutorial for Beginners & Students

Learn how to create advanced spline shapes in 3ds Max such as Arc, Ngon, Star, Donut, and Text, which are essential for detailed 2D design and 3D modeling. These shapes are widely used in interior design, architecture, and product modeling to build complex geometry.

In this tutorial, you will learn:

• How to draw Arc, Ngon, Star, Donut, and Text splines using the Shapes panel.

• How to modify parameters like radius, sides, corners, and thickness.

• How to use Text tool to create 3D titles and labels.

• How to convert splines to 3D using Extrude and Bevel modifiers.

This tutorial is perfect for +2 students, BA students, and beginners looking to build strong CAD and 3D modeling skills.

✅ Steps to Create Arc, Ngon, Star, Donut & Text (Spline)

1. Create Arc

1. Go to Create → Shapes → Arc.

2. Click and drag in the viewport to define the arc’s start, center, and end points.

3. Adjust radius and angle in the Modify panel for precision.

---

2. Create Ngon

1. Go to Create → Shapes → Ngon.

2. Click and drag to define the radius.

3. Adjust number of sides to create polygons like pentagon, hexagon, etc.

---

3. Create Star

1. Go to Create → Shapes → Star.

2. Click and drag to define inner and outer radius.

3. Adjust the number of points and radius ratios for desired shape.

---

4. Create Donut

1. Go to Create → Shapes → Donut.

2. Click and drag to define inner and outer radius.

3. Useful for creating rings, pipes, or circular frames.

---

5. Create Text

1. Go to Create → Shapes → Text.

2. Type your text in the Text field.

3. Adjust font, size, and alignment.

4. Convert to Editable Spline for further editing or apply Extrude for 3D text.

---

💡 Pro Tips

• Use Snaps (S key) for perfect alignment.

• Combine shapes with Attach for complex designs.

• Apply Extrude or Bevel to turn 2D splines into 3D models.

• Use Text tool to create company logos or signboards.

Commands Explained: Move, Rotate & Scale in 3ds Max – Step by Step Tutorial for Beginners & Students

Learn how to use the most essential transformation tools in 3ds Max — Move, Rotate, and Scale — that form the foundation of every 3D modeling project. These commands help you accurately position, orient, and resize objects for precise design and visualization.

In this tutorial, you will learn:

• How to Move objects using gizmos and coordinate axes.

• How to Rotate models for perfect alignment.

• How to Scale objects uniformly or non-uniformly.

• Tips for working in World and Local coordinate systems.

Perfect for +2 students, BA students, and beginners, this lesson strengthens your 3D modeling basics for careers in interior design, architecture, and product visualization.

👉 Don’t forget to like, share & subscribe for more 3ds Max training videos for students and aspiring designers.

🧩 Steps to Use Move, Rotate & Scale Commands in 3ds Max

1. Move Command:

• Select the object you want to move.

• Click on the Move tool (W) from the toolbar.

• Use the X, Y, and Z axes to drag your object in any direction.

• You can also type exact coordinates in the Transform Type-In panel for precision.

2. Rotate Command:

• Select your object.

• Click on the Rotate tool (E).

• Rotate around the desired axis using the rotation gizmo.

• For accurate rotation, enter the rotation values in the Coordinate panel.

3. Scale Command:

• Select your object and choose the Scale tool (R).

• Drag on the scale gizmo to resize your object.

• Use Uniform Scale for equal resizing or Non-uniform Scale for specific axes.

• Adjust values numerically for exact scaling.

How to Use Snap Toggle for Precise Object Placement in 3DS Max ??

What is Snap Toggle in 3DS Max?

The Snap Toggle in Autodesk 3DS Max is a modeling tool that allows you to lock your cursor to specific points—like vertices, edges, midpoints, or grid intersections—while transforming objects. It's extremely helpful when you're:

• Aligning objects

• Positioning elements precisely

• Modeling modular environments

• Creating symmetrical or grid-based layouts

It’s especially useful for architectural visualization, interior design, product modeling, and game-level design.

3DS Max Grid and Snap Settings!!

What is the Grid in 3DS Max?

The Grid in 3DS Max acts as a visual reference that helps you position, scale, and align objects accurately in your 3D scene.
It’s essentially your workspace guide, similar to graph paper — helping you maintain proportion and scale consistency.

Types of Grids:

1. Home Grid – The default grid on the ground plane (XY Plane).

2. User Grids – Custom grids you can create for specific modeling needs or orientations.

3. Dynamic Grids – Appear when you work in orthographic or perspective views for better visualization.

How to Customize the Grid:

• Go to Customize > Grid and Snap Settings or press G to toggle grid visibility.

• In the Grid and Snap Settings dialog, you can adjust:

  • Grid spacing – distance between grid lines.

  • Major lines – helps visually separate larger intervals.

  • Perspective view grid extent – controls how far the grid extends in perspective view.

Properly adjusting these settings can make modeling faster and more intuitive.

What are Snap Settings in 3DS Max?

Snapping ensures that your objects align or connect precisely with other geometry, grid lines, or pivot points. It helps avoid tiny gaps, overlaps, or misaligned geometry that can cause issues during rendering or animation.

Common Snap Types:

1. Grid Points – Snap to grid intersections.

2. Vertex – Snap to the corners or points of objects.

3. Edge/Face – Snap along an edge or on a face surface.

4. Pivot Point – Snap to the object’s pivot location.

5. Center – Snap to the geometric center of an object.

How to Use Snaps:

• Press S to toggle snapping on/off.

• Right-click the Snaps Toggle icon on the main toolbar to open Grid and Snap Settings.

• Under the Snaps tab, select the types of elements you want to snap to.

You can even customize Snap Strength and 3D vs. 2D Snapping for enhanced control.

Learn More with Professional 3DS Max Training

If you’re serious about building a career in 3D modeling, animation, or architectural visualization, mastering these foundational tools is essential.

At CAD GURU, our 3DS Max Training Course covers everything from basic interface navigation to advanced modeling techniques, lighting, and rendering workflows. You’ll get hands-on practice with tools like Grid, Snaps, and Precision Modeling — all guided by certified trainers.

Helix, Egg, Section & Freehand Tools in 3ds Max – Explained for Beginners !!

If you’re learning 3DS Max, you’ve probably explored basic 2D shapes like circles, rectangles, and lines. But did you know that 3DS Max offers special shape tools like Helix, Egg, Section, and Freehand that give you more creative control and design flexibility?

What is the Helix Tool?

The Helix tool creates a spiral-shaped 3D spline, often used to model springs, threads, spiral staircases, or cables.

How to Create a Helix:

1. Go to the Command Panel > Create > Shapes > Splines > Helix.

2. Click and drag in the viewport to set the base radius.

3. Release, then drag upward to set the height and top radius.

Key Parameters:

• Turns – Number of spiral loops.

• Height – Total vertical size of the helix.

• Radius 1 & 2 – Control bottom and top circle sizes.

• Bias – Adjusts the distribution of turns (more toward top or bottom).

What is the Egg Tool?

The Egg tool creates an oval or egg-shaped spline, perfect for modeling organic shapes like eggs, bulbs, domes, or decorative elements.

How to Use It:

1. Navigate to Create > Shapes > Splines > Egg.

2. Click and drag to define the egg’s base.

3. Release the mouse to set the height or orientation.

Key Parameters:

• Length and Width – Control the proportions of the egg.

• Orientation – Adjusts whether the wider end is at the top or bottom.

What is the Section Tool?

The Section tool allows you to create cross-sectional splines from existing 3D geometry.
It’s an excellent tool for extracting 2D profiles from complex models.

How to Use It:

1. Go to Create > Shapes > Section.

2. Click and drag across the model where you want to create a section.

3. The tool will generate a 2D spline representing that slice.

Applications:

• Creating floor plans or elevations from 3D models.

• Generating profiles for lofting or reconstructing geometry.

• Reverse engineering parts of complex objects.

Chamfer Box, Cylinder & Oil Tank in 3ds Max – Complete Beginner’s Guide

If you’re learning Autodesk 3DS Max, understanding basic 3D geometry tools is the first step toward becoming a professional 3D artist. Among these, Chamfer Box, Cylinder, and Oil Tank are commonly used parametric primitives that help you build everything from simple objects to detailed 3D models.

What is a Chamfer Box?

The Chamfer Box is similar to a regular box, but with rounded or beveled edges. It’s ideal for creating objects that need smooth corners, such as furniture, appliances, or mechanical parts.

How to Create a Chamfer Box:

1. Go to Create > Geometry > Standard Primitives > Chamfer Box.

2. Click and drag in the viewport to set the length and width.

3. Drag again to set the height.

Important Parameters:

• Length, Width, Height – Control the box dimensions.

• Fillet – Adjusts the roundness of the box corners.

• Fillet Segments – Controls how smooth the rounded edges appear.

What is a Cylinder?

The Cylinder is one of the most commonly used primitives in 3DS Max. It creates a circular object with flat top and bottom surfaces — perfect for modeling pipes, bottles, columns, or wheels.

How to Create a Cylinder:

1. Go to Create > Geometry > Standard Primitives > Cylinder.

2. Click and drag in the viewport to define the radius.

3. Drag upward to set the height.

Key Parameters:

• Radius 1 & Radius 2 – Control the base and top size.

• Height – Sets the cylinder’s vertical dimension.

• Height Segments – Adds divisions along height for smoother deformation.

• Cap Segments – Adds divisions on the top and bottom surfaces.

• Sides – Controls how smooth the circular surface appears.

What is the Oil Tank?

The Oil Tank primitive creates a cylindrical object with rounded ends, similar to a capsule shape. It’s perfect for modeling storage tanks, pressure vessels, or industrial containers.

How to Create an Oil Tank:

1. Go to Create > Geometry > Standard Primitives > Oil Tank.

2. Click and drag to define the radius.

3. Drag upward to set the height.

Key Parameters:

• Radius – Controls the circular base size.

• Height – Defines the vertical size of the tank.

• Cap Height – Adjusts the curvature of the top and bottom ends.

• Sides – Controls surface smoothness.

Hedra & Torus Knot in 3ds Max – A Complete Beginner’s Guide

When learning Autodesk 3DS Max, understanding extended primitives is essential for creating complex 3D shapes quickly. Two of the most interesting and versatile extended primitives are the Hedra and Torus Knot.

These tools allow you to generate geometrically rich and visually appealing shapes that are useful in product design, abstract modeling, jewelry creation, and animation.

In this article, we’ll explore what the Hedra and Torus Knot are, how to use them, and their practical applications in 3D modeling.

What is the Hedra Tool?

The Hedra tool creates a complex geometric 3D shape based on various platonic solids like cubes, tetrahedrons, and dodecahedrons. It’s widely used for creating crystal-like, sci-fi, or mathematical shapes.

The name “Hedra” comes from the word “polyhedron,” which means a 3D object made of flat polygonal faces.

---

How to Create a Hedra:

1. Go to Create > Geometry > Extended Primitives > Hedra.

2. Click and drag in the viewport to define the size.

3. Release to create the object.

What is the Torus Knot Tool?

The Torus Knot creates a twisted ring or looping 3D shape — similar to a torus (donut shape), but with a mathematically twisted path.

It’s perfect for creating decorative, mathematical, and abstract designs with a flowing, ribbon-like look.

---

How to Create a Torus Knot:

1. Go to Create > Geometry > Extended Primitives > Torus Knot.

2. Click and drag in the viewport to define the radius and thickness.

3. Release to create the shape.

RingWave, Hose & Prism in 3ds Max – Explained for Beginners

When learning Autodesk 3DS Max, one of the best ways to understand 3D modeling is by exploring Extended Primitives — a special category of shapes that help create complex models quickly.

Among these, the Ring Wave, Hose, and Prism tools stand out for their unique structure and flexibility. They’re especially useful for creating mechanical models, abstract designs, and architectural elements.

What is the RingWave Tool?

The RingWave tool creates a circular wave-like object with multiple ridges or rings spreading outward from the center. It’s perfect for decorative patterns, abstract designs, or scientific visuals like ripples or sound waves.

---

How to Create a RingWave:

1. Go to Create > Geometry > Extended Primitives > RingWave.

2. Click and drag in the viewport to set the radius.

3. Release and drag again to set the height.

What is the Hose Tool?

The Hose tool creates a flexible tube-like object that can bend and twist between two control points. It’s commonly used for cables, pipes, hoses, and springs in mechanical and industrial scenes.

---

⚙️ How to Create a Hose:

1. Go to Create > Geometry > Extended Primitives > Hose.

2. Click and drag to place the start point of the hose.

3. Drag to set the end point and release.

What is the Prism Tool?

The Prism tool creates a three-sided polygonal solid — essentially a triangular prism. It’s a simple yet powerful tool for building architectural, mechanical, or geometric structures.

---

How to Create a Prism:

1. Go to Create > Geometry > Extended Primitives > Prism.

2. Click and drag to set the base size.

3. Release and drag upward to define the height.

How to Create Realistic Curtains in 3ds Max – Step-by-Step Guide for Beginners

When working on interior visualization projects in Autodesk 3DS Max, one of the most essential details that add realism to a scene is curtains. Realistic curtains bring a sense of softness, elegance, and life to interiors — whether it’s a cozy bedroom, modern living room, or luxury hotel suite.

In this tutorial, you’ll learn how to create realistic curtains in 3DS Max, step-by-step — from modeling and applying cloth simulation to adding textures and lighting for a photo-real finish.

Why Realistic Curtains Matter in 3D Interiors

Curtains are not just decorative — they play a huge role in visual storytelling.
In 3D visualization, they:

• Soften hard edges and lighting.

• Add realism through natural fabric folds.

• Convey the mood and atmosphere of the room.

• Help frame windows and improve composition.

Creating realistic, fabric-like behavior requires understanding cloth simulation, material setup, and lighting — all achievable inside 3DS Max.

---

Step 1: Setting Up Your Scene

Before creating the curtain, make sure your window frame or wall setup is ready.
You can model a simple window using Box primitives or import one from an architectural model.

Recommended Scene Setup:

• Unit setup: centimeters or inches (depending on your project).

• Add a window frame and curtain rod for realistic scale reference.

• Set your camera angle for better visualization later.

---

Step 2: Creating the Curtain Plane

1. Go to Create > Geometry > Standard Primitives > Plane.

2. In the Top or Front view, draw a plane that represents the flat curtain fabric.

3. Adjust the Length and Width Segments — more segments = smoother folds.

   💡 Example: Use 60x100 segments for a medium curtain.

4. Move the plane slightly in front of the window frame.

This plane will act as the curtain cloth before simulation.

---

Step 3: Applying Cloth Modifier

1. With the plane selected, go to the Modifier List and choose Cloth.

2. In the Object Properties (found in the Cloth modifier rollout):

   • Select your plane and click Cloth.

   • Under Presets, choose a material like Silk, Cotton, or Custom Fabric.

3. Add your curtain rod or rings as Collision Objects (so the fabric drapes correctly).

4. Click OK to apply settings.

💡 Pro Tip: Use higher segment counts for softer, more detailed folds.

---

Step 4: Pinning and Draping the Cloth

To make the curtain hang naturally:

1. In the Cloth modifier, go to Group sub-object mode.

2. Select the top vertices of the curtain where it attaches to the rod.

3. Click Make Group and then Sim Node.

4. Assign the group to the curtain rod or leave it fixed in place.

Now click Simulate (Local) or Simulate to let the curtain fall under gravity.
You’ll see realistic folds forming automatically!

💡 Pro Tip: Try Simulate Local first to test the drape without major movement.

---

Step 5: Adding Fabric Material

A realistic material setup is key to making your curtains look believable.

1. Open the Material Editor (M key).

2. Apply a VRayMtl or Standard Physical Material.

3. Assign a fabric texture such as linen, silk, or cotton.

4. Adjust:

   • Diffuse map for color/pattern.

   • Bump map for weave texture.

   • Translucency or Opacity for light passing through fabric.

💡 Pro Tip: Lower the Glossiness slightly for a soft light reflection.

---

Step 6: Lighting the Scene

Lighting plays a huge role in how fabric looks.

• Use V-Ray Sun and Sky or HDRI lighting for natural light.

• Enable Global Illumination (GI) for soft shadow blending.

• Adjust exposure and camera settings for realistic brightness.

💡 Pro Tip: Test render different times of day — morning light through sheer curtains looks stunning.

---

Step 7: Rendering and Final Touches

1. Choose V-Ray or Corona Renderer for realistic output.

2. Use Depth of Field (DOF) to add softness and focus.

3. Add a slight color correction in V-Ray Frame Buffer or Photoshop to enhance mood.

Your realistic curtain is now ready!

---

Bonus Tips for Realism

• Use double-sided materials to simulate fabric thickness.

• Add slight noise to break symmetry in folds.

• Combine two curtains (sheer + thick) for a luxury look.

• Use UVW Mapping for correct fabric direction.

---

🎓 Learn 3DS Max the Professional Way

At CAD GURU, our 3DS Max Training Course teaches you how to create photo-realistic interior designs, including fabrics, lighting, and materials.
You’ll learn advanced tools like Cloth Simulation, V-Ray Materials, Lighting Setup, and Rendering Techniques — all with hands-on guidance from expert instructors.

Join today to master 3D modeling, texturing, and rendering with Autodesk 3DS Max and start your career in 3D visualization and interior design.

Spindle, Capsule, L-Ext, C-Ext & Gengon in 3ds Max – Explained for Beginners

If you’re exploring Autodesk 3DS Max, you’ve likely come across a category called Extended Primitives. These are special 3D shapes designed to give you more modeling flexibility than standard primitives like boxes or spheres.

Among them, tools like Spindle, Capsule, L-Ext, C-Ext, and Gengon help you create complex geometrical forms for product design, mechanical modeling, and architectural visualization.

What Are Extended Primitives?

Extended Primitives in 3DS Max are advanced geometric shapes that offer extra parameters and unique forms compared to standard primitives.

You can find them under:
👉 Command Panel > Create > Geometry > Extended Primitives

These tools are essential for creating detailed models without spending hours manually editing geometry.

What is the Spindle Tool?

The Spindle primitive creates a symmetrical, curved object similar to a lathe-turned shape or spool. It’s perfect for modeling table legs, chair arms, vases, or decorative elements.

---

How to Create a Spindle:

1. Go to Create > Geometry > Extended Primitives > Spindle.

2. Click and drag in the viewport to set the base radius.

3. Release and drag again to define the height.

What is the Capsule Tool?

The Capsule creates a cylindrical shape with rounded ends, like a medicine capsule or a bullet.
It’s a great base for product modeling, mechanical parts, or organic forms.

---

How to Create a Capsule:

1. Go to Create > Geometry > Extended Primitives > Capsule.

2. Click and drag to define the radius.

3. Drag upward to set the height.

What is the L-Ext Tool?

The L-Ext (L-Section) tool creates a 3D L-shaped cross-section, often used in metal structures, beams, or frames. It’s commonly used in engineering and architectural modeling.

---

How to Create L-Ext:

1. Go to Create > Geometry > Extended Primitives > L-Ext.

2. Click and drag to define the base size.

3. Release and drag again to set the height.

What is the C-Ext Tool?

The C-Ext (C-Section) creates a C-shaped profile similar to steel channels used in industrial structures.
It’s ideal for modeling frames, supports, trusses, and tracks.

---

How to Create C-Ext:

1. Go to Create > Geometry > Extended Primitives > C-Ext.

2. Click and drag in the viewport to create the shape.

What is the Gengon Tool?

The Gengon tool creates a polygon-based prism with beveled or chamfered sides. It’s a versatile primitive often used in product design, architectural decoration, and abstract modeling.

---

How to Create Gengon:

1. Go to Create > Geometry > Extended Primitives > Gengon.

2. Click and drag to set the radius and height.

How to Create Realistic Cushion & Pillow Models in 3ds Max – Step-by-Step Guide

When designing interior visualizations in 3DS Max, even the smallest details can make a huge difference — and cushions and pillows are one of them.

Soft furnishings like pillows, cushions, and bolsters add warmth, comfort, and realism to 3D interior scenes. In this tutorial, you’ll learn how to create realistic cushion and pillow models in 3DS Max using simple modeling techniques and Cloth simulation for natural-looking fabric folds.

Step 1: Setting Up the Scene

Before starting, make sure your workspace units and viewport setup are correct.

Scene Preparation:

1. Open 3DS Max and set units to centimeters or inches.

2. Create a base object (like a sofa or bed) where the cushion will rest.

3. Position your camera and lighting for previewing realism later.

---

Step 2: Creating a Basic Cushion Shape

You can start with a simple Box primitive as your cushion base.

Steps:

1. Go to Create > Geometry > Standard Primitives > Box.

2. Draw a box with approximate cushion dimensions (e.g., 60cm x 60cm x 10cm).

3. Increase the Length and Width Segments to 10–15 for smoother edges.

4. Convert the box to an Editable Poly (Right-click > Convert To > Editable Poly).

💡 Pro Tip: The more segments you add, the better the cushion will deform during simulation.

---

Step 3: Softening the Shape

To make it look more natural:

1. Select Polygon Mode and slightly scale down the side edges.

2. Apply a FFD (Free Form Deformation) or Taper Modifier to make it less uniform.

3. Use Soft Selection to push and pull corners for a natural, soft shape.

💡 Pro Tip: No real pillow is perfectly square — add a bit of asymmetry for realism.

---

Step 4: Applying Cloth Modifier for Realistic Folds

The Cloth Modifier helps simulate natural fabric behavior.

Steps:

1. Select your cushion object.

2. From the Modifier List, apply Cloth.

3. In the Cloth modifier panel, open Object Properties.

4. Select your cushion and click Cloth.

   • Choose a preset like Cotton or Silk, or create your own fabric properties.

5. Add a Collision Object (like the sofa or bed) to interact with the cushion.

Now click Simulate Local or Simulate to run the cloth simulation.
You’ll see the cushion puff up and fall naturally into place.

💡 Pro Tip: Increase Pressure in Cloth settings for a fluffier, fuller cushion.

---

Step 5: Adding Material and Texture

To make your cushion realistic, apply a fabric texture using V-Ray or Physical Materials.

Steps:

1. Open Material Editor (M key).

2. Choose a V-Ray Mtl or Physical Material.

3. Add:

   • Diffuse map: fabric texture (linen, velvet, cotton).

   • Bump or Normal map: to create fabric weave details.

   • Glossiness: low for matte fabrics, higher for shiny ones.

4. Apply the material to your cushion.

💡 Pro Tip: Use UVW Map Modifier to adjust texture direction and scale correctly.

---

Step 6: Creating Pillows with Rounded Shapes

For pillows, you can follow the same process but start with a Sphere or Capsule primitive.

Steps:

1. Create a Sphere (Create > Standard Primitives > Sphere).

2. Scale it along one axis to flatten it slightly.

3. Convert it to an Editable Poly and adjust vertices to make it oval.

4. Apply Cloth modifier to add realistic sagging and folds.

💡 Pro Tip: Add a Seam Line using a narrow bump map or displacement texture for extra realism.

---

Step 7: Adding Details – Seams, Wrinkles & Buttons

Small details bring your cushions to life:

• Use Displacement Maps for stitched seams.

• Add Normal Maps for fine fabric wrinkles.

• Model or texture buttons or embroidery for extra detailing.

• Use the Noise Modifier slightly for natural unevenness.

💡 Pro Tip: Combine Cloth Modifier with Turbosmooth for soft, high-poly results.

---

Step 8: Lighting & Rendering

Lighting enhances fabric realism dramatically.

Recommended Settings:

• Use V-Ray or Corona Renderer for photorealistic results.

• Add Area Lights or V-Ray Dome Light for soft shadows.

• Enable Global Illumination (GI) for accurate light bounce.

• Adjust camera exposure and white balance for warm interiors.

Render and enjoy your beautifully realistic cushion or pillow model!

ProBoolean in 3ds Max – The Ultimate Guide for Beginners

If you’re learning Autodesk 3DS Max, one of the most powerful tools for creating complex shapes is the ProBoolean modifier.
It allows you to combine, subtract, or intersect multiple objects with precision — making it essential for mechanical modeling, architectural details, and product design.

What is ProBoolean in 3ds Max?

The ProBoolean tool in 3DS Max is an advanced version of the traditional Boolean operation.
It helps you merge or cut objects together to form complex geometry by using Add, Subtract, Intersect, or Merge operations.

You can use ProBoolean to:

• Combine two or more 3D objects into one.

• Cut holes, slots, or patterns into solid models.

• Create mechanical parts, windows, or detailed architectural structures.

• Quickly build prototypes for hard-surface models.

Step 1: Where to Find ProBoolean

To use ProBoolean, follow these steps:

1. Go to the Command Panel → Create → Geometry.

2. From the dropdown list, select Compound Objects.

3. Choose ProBoolean.

4. Under Operation, choose the type of Boolean action you want (Add, Subtract, etc.).

Step 2: Understanding Boolean Operations

The ProBoolean tool offers several powerful operations:

Operation	Description	Example Use
Union (Add)	Combines two or more objects into one.	Merging two shapes.
Subtract	Removes the volume of one object from another.	Cutting holes or slots.
Intersect	Keeps only the common volume of two objects.	Creating complex joints.
Merge	Similar to Add, but keeps separate elements.	Combining without deleting interior faces.

---

Step 3: Creating a ProBoolean Object

Let’s go through a practical example:

1. Create a Box (your main object).

2. Create a Cylinder (the cutter).

3. Select the Box, then go to Compound Objects > ProBoolean.

4. Choose Subtract (A – B) as the operation.

5. Click Start Picking, and then click on the Cylinder.

You’ll see the cylinder cut a perfect hole through the box!

---

Step 4: ProBoolean Parameters and Controls

In the Modify Panel, ProBoolean gives you a lot of control:

• Operation: Change from Add, Subtract, Intersect, or Merge.

• Make Operand: Choose whether new shapes become part of the operation.

• Display Result: Toggle between showing the base object or the final result.

• Retain Sub-Objects: Keeps original geometry for future editing.

• No Edge Removal: Keeps topology edges for manual cleanup later.

---

Step 5: Tips for Cleaner ProBoolean Results

Boolean modeling can sometimes create messy geometry if not used carefully.
Follow these best practices for smooth results:

1. Use clean, closed meshes. Avoid open edges or non-manifold geometry.

2. Align pivots properly before combining objects.

3. Convert to Editable Poly after the Boolean operation for final cleanup.

4. Apply Turbosmooth or Chamfer modifiers after ProBoolean for polished surfaces.

5. Use fewer operands where possible to keep mesh lightweight.

---

Step 6: Advanced Uses of ProBoolean

Once you master the basics, ProBoolean becomes a powerful modeling shortcut for advanced designs.

You can use it to:

• Create intricate architectural patterns (e.g., grillwork, window panels).

• Design industrial and mechanical components.

• Cut logos, engravings, or embossed details into 3D surfaces.

• Combine with Array or Clone tools to produce repetitive design patterns.

---

Step 7: Adding Materials and Rendering

After you’ve created your ProBoolean model:

1. Convert it to Editable Poly.

2. Assign different materials to different parts using Element Mode.

3. Use V-Ray or Corona Renderer for realistic lighting and shading.

Soft shadows and reflective materials can highlight the depth and precision of Boolean cuts beautifully.

---

Real-World Examples of ProBoolean Modeling

Industry	Application
Architecture	Windows, doors, stair cutouts, metal joints
Product Design	Logos, casing holes, vents
Mechanical Design	Bolts, gears, and slots
Interior Design	Furniture cutouts, wall panels

Array Command in 3ds Max – Complete Guide for Beginners If you’ve ever wanted to create multiple copies of an object in a perfectly spaced pattern — whether in a straight line, circular arrangement, or 3D grid — then the Array Command in 3ds Max is your go-to tool. The Array Tool helps you duplicate objects with precise control over their position, rotation, and scale — saving hours of manual work. What is the Array Command in 3ds Max? The Array Command in 3ds Max allows you to create multiple copies or instances of an object in a linear (row/column) or radial (circular) pattern. It’s a powerful tool for quickly creating repetitive geometry such as: Windows on a building facade Chairs arranged in a classroom Lights in a circular pattern Tiles, railings, stairs, and more Where to Find the Array Tool You can find the Array Command easily in the menu: Main Menu → Tools → Array Once you click it, the Array Dialog Box appears — allowing you to set how the copies will be arranged. Understanding Array Parameters The Array Dialog Box is divided into three main sections: 1. Array Dimensions This defines how many copies will be created in each direction. 1D Array: Copies in a single line. 2D Array: Copies in rows and columns. 3D Array: Copies in rows, columns, and layers. Example: If you set Count X = 5, Count Y = 3, you’ll get 5 columns and 3 rows of objects. 2. Transformation Options You can control how objects are moved, rotated, and scaled with each copy. Transformation Description Move Moves each copy by a set distance (X, Y, Z). Rotate Rotates each copy around an axis (useful for circular arrays). Scale Gradually increases or decreases object size. 💡 You can combine all three — move, rotate, and scale — in one array for complex patterns! 3. Type of Copy You can choose how 3ds Max creates the new objects: Copy: Creates independent objects. Instance: Shares parameters — changing one changes all. Reference: Similar to instance but allows local modifications. 💡 Use “Instance” for furniture, lights, or repeating elements where you might need to edit all objects later. Step-by-Step: How to Use the Array Command in 3ds Max Let’s go through a simple example to understand it better. Example: Creating a Circular Light Arrangement Create a Light Object (e.g., a small sphere or light bulb). Go to Tools → Array. In the Array Dialog Box: Set Type of Object: Instance (so changes update automatically). Under Rotation, set Z-axis rotation to 360° / number of copies (for a full circle). Set Count = 8 (for 8 lights). Click Preview to visualize. Once satisfied, click OK. ✅ You now have 8 equally spaced lights in a perfect circle — done in seconds! Example 2: Linear Array for Windows or Chairs Create a single window frame or chair. Go to Tools → Array. In Move Transform, enter: X-axis = 200 cm (or distance between copies). Count X = 10 (for 10 windows/chairs). Choose Instance and click OK. 💡 This technique is widely used for architectural modeling — duplicating windows, columns, or light fixtures. Pro Tips for Using the Array Tool Use Pivot Points Smartly: The Array Command uses the object’s pivot point as the rotation and movement reference. → Adjust pivot via Hierarchy → Affect Pivot Only. Preview Before Applying: Use the Preview button to test your settings before creating multiple copies. Combine with Snap Tools: Use Grid and Snap Settings for perfect alignment in architectural layouts. Use Instances for Efficiency: Instanced arrays save memory and make mass editing easier. Convert to Editable Poly (if needed): Once satisfied with your array, collapse the stack for editing flexibility. Lattice Command in 3ds Max – Complete Guide for Beginners When it comes to turning simple geometry into detailed, wire-like structures, the Lattice Modifier in 3ds Max is an incredibly useful tool. Whether you’re designing futuristic models, architectural frameworks, or artistic wireframes, the Lattice Command helps transform your edges and vertices into solid tubes and joints — in just a few clicks! Let’s explore what the Lattice Modifier does, how to use it, and practical examples for your 3D projects. What is the Lattice Command in 3ds Max? The Lattice Modifier in 3ds Max is used to convert the edges and vertices of an object into 3D geometry — typically cylinders (struts) and spheres (joints). It’s commonly used to create: Wireframe-like structures Metal grids or scaffolding Cage-style models Architectural trusses Futuristic or industrial designs 💡 In short: Lattice turns your polygonal object’s edges into pipes and its vertices into joints. Where to Find the Lattice Command You can find the Lattice command as a modifier in 3ds Max. Follow these steps: Select any Editable Mesh or Editable Poly object. Go to the Modify Panel. Click on the Modifier List dropdown. Scroll down and choose Lattice. Once applied, your object’s wireframe will instantly turn into a 3D structure made of struts and joints. Lattice Modifier Parameters The Lattice Modifier comes with several powerful parameters that allow you to control the thickness, type, and appearance of your structure. Let’s break them down: 🔹 1. Base Type Determines what part of the object is converted: Struts: Converts edges into cylinders. Joints: Converts vertices into spheres. You can enable either one — or both together — depending on the style you want. 🔹 2. Struts Parameters Used to control the cylinders created from edges. Radius: Controls the thickness of the struts (pipes). Sides: Number of sides on the cylinder — higher means smoother geometry. Make Struts: Toggle this to turn edges into pipes. 💡 Tip: For lightweight models, use 4–6 sides; for close-up renders, use 12–16 sides for smoother results. 🔹 3. Joints Parameters Used to control the spheres created at vertices. Radius: Controls the size of the joints (balls). Segments: Controls smoothness of each sphere. Make Joints: Enable this to create spheres at the vertices. 💡 You can increase joint radius for more emphasis on intersections. 🔹 4. Advanced Options Smooth: Adds smooth shading between faces. Real-World Map Size: Keeps proportions consistent when using materials. Generate Mapping Coords: Useful for applying textures easily. Weld Core Struts: Connects struts and joints for seamless geometry. Step-by-Step: How to Use the Lattice Modifier Let’s go through an example to understand how it works. Example: Creating a 3D Metal Framework Create a Box (or any shape with edges). Convert it to Editable Poly (Right-click → Convert To → Editable Poly). Apply Lattice Modifier from the Modifier List. In Parameters: Turn ON Make Struts Adjust Radius = 2.0 Increase Sides = 6 Enable Make Joints and set Radius = 3.0 ✅ You’ll instantly see your simple box turn into a metal framework structure! Example 2: Artistic Wire Structure Create a Teapot or Sphere. Convert it to Editable Poly. Apply Lattice Modifier. Only enable Struts to get a wire-style design. Apply a metallic material (e.g., Chrome or Steel). 💡 This technique is great for creating futuristic, sci-fi models or abstract art. Pro Tips for Using Lattice Command Use Editable Poly: Always convert your object to Editable Poly or Mesh for better edge control. Reduce Polygon Count: The Lattice Modifier adds geometry. Keep your base model simple to avoid heavy files. Apply TurboSmooth or MeshSmooth (optional): For a cleaner, more refined look. Use Materials Smartly: Apply metal or glass shaders for industrial or architectural effects. Combine with Array Tool: Duplicate your lattice model using Array Command for repeating structures or patterns. Bend & Melt Command in 3ds Max – Complete Guide for Beginners In Autodesk 3ds Max, modifiers are the heart of modeling flexibility. Among the most useful (and fun!) ones are the Bend and Melt modifiers. These tools allow you to deform and shape your 3D models in creative ways — whether you’re bending metal pipes, curving banners, or melting chocolate bars for realistic effects. Let’s explore both commands in detail, step-by-step, and see how they can enhance your 3D modeling and animation projects. What is the Bend Modifier in 3ds Max? The Bend Modifier allows you to bend or curve an object along a specific axis or direction. It’s perfect for creating natural curves in architecture, interiors, furniture, and animation. For example: Bending a pipe or rod Creating a curved signboard Modeling arched doorways or columns Animating flexible objects like flags or banners 💡 Think of Bend as gently folding or curving your 3D object without changing its volume. Where to Find the Bend Modifier Select your object (e.g., Box, Cylinder, Plane, etc.). Go to the Modify Panel. From the Modifier List, select Bend. Bend Modifier Parameters Explained Parameter Description Angle Controls how much the object bends (in degrees). Direction Determines which direction the bend is applied. Bend Axis Choose X, Y, or Z — the axis along which the bend occurs. Limit Effect Restricts the bend to a portion of the object (useful for partial bending). 💡 Positive angle bends in one direction; negative bends in the opposite direction. Step-by-Step: Applying the Bend Modifier Let’s create a simple bend example: Create a Box in the viewport. Go to Modify Panel → Modifier List → Bend. In Parameters: Set Angle = 90° Set Direction = 0° Try changing Axis to X, Y, or Z to see different results. Enable Limit Effect and set limits to bend only part of the box. ✅ You now have a smoothly curved object — ideal for furniture, signage, or mechanical parts! Pro Tips for the Bend Modifier Add more segments to your model before bending for smoother curves. Use Gizmo controls to reposition the bending center. Combine Bend + Twist + Taper for complex deformations. Animate the Angle value for bending motion effects. What is the Melt Modifier in 3ds Max? The Melt Modifier gives objects a melting or softening effect, simulating heat or deformation — just like ice cream melting under the sun! It’s often used for visual effects, motion graphics, and fun animations. Where to Find the Melt Modifier Select your object (e.g., Box, Teapot, Text). Go to the Modify Panel. From the Modifier List, choose Melt. The object will instantly appear softer or partially melted depending on your settings. Melt Modifier Parameters Explained Parameter Description Amount Determines how much the object melts (0–100). Spread Controls how wide the melted area spreads out. Material Type Simulates different physical melting behaviors. Options: Glass, Jelly, Plastic, Ice. Soften Edges Smoothens the surface for a natural, melted appearance. 💡 Each Material Type changes how gravity and surface tension affect the model — “Glass” drips sharply, “Jelly” sags softly. Step-by-Step: Applying the Melt Modifier Example: Melting a Chocolate Bar 🍫 Create a Box (length: 60, width: 40, height: 10). Apply Melt Modifier. Set: Amount = 50 Spread = 60 Material Type = Jelly Enable Soften Edges for a smooth result. ✅ Your box now looks like a piece of melting chocolate or soft rubber! Using Bend & Melt Together These two modifiers can be combined for interesting results: Example: Melting a Curved Object Create a Cylinder. Apply Bend Modifier → Angle = 120°. Then apply Melt Modifier → Amount = 40, Material Type = Glass. You’ll get a curved and melting pipe-like effect — great for animations or surreal visualizations. 💡 Tip: Modifier order matters — try applying Melt first, then Bend, and observe the difference! Real-World Uses of Bend & Melt Modifiers Modifier Used For Example Applications Bend Controlled deformation Furniture design, curved walls, banners, metal rods Melt Soft deformation / VFX Candles, ice cream, heat effects, animation props Pro Tips for Better Results Always increase segments for smoother deformation. Use Material + Lighting (like V-Ray or Corona) to enhance the realism of melted effects. Experiment with Modifier Stack order to discover creative outcomes. Combine Melt + Noise + FFD for organic effects like dripping wax or lava.
